-- Electric ev car charger with type 1 type 2 plug to charge cars.(TESLA needs a adapter.) -- Screens show ev car charger electricity consumption, current, voltage, hours etc.
-- Managing system for adjusting current, observing charging data and history etc.
-- Build in type B RCD leakage protection: detect all leakages from cars.
-- App control start and stop ev cars charging, make appointment for charging.
-- Self adjustable power to coordinate with ev cars' obc power.
-- customize logo, language, manual, RFID card for ev chargers.
Feature

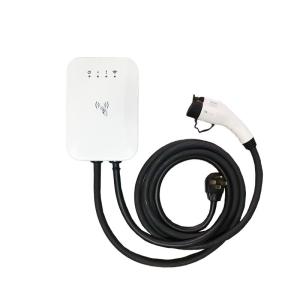

UL Listed EV Car Charger SAE J1772 Standar Type 1 Level 2 32a 40a 7kw 10kw Electric Car Charger EV Wallbox Charging Station for US Canada With Wifi APP Level 2, 32a/40amp available in 7kw and 10kw
1. RFID card reader /app interface2. LCD screen optional
3. Wall-mounted or pole mounted for optional
4. IP54 for indoor and outdoor application
5. 5M(18inch) or 7.5M(25inch) charger plug for choose
6. OCPP, WIFI
Specification
| Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 |
| AC Power input rating | 1 phase 220V±15% | | |
| AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A |
| 7KW/32A | 22KW/32A | 7KW/32A |
| N/A | 43KW/63A | 10KW.40A |
| Rated Frequency | 50/60HZ |
| User interface & control |
| Charging control | Plug and charge √ | RFID card √ | CMS operate √ | |
| Display Screen | 4.3inch LCD screen |
| Wifi connection | Support √ | OCPP Protocol | 1.6J √ | 2.0.1 √ |
| Ethernet Interface | LAN(RJ-45) √ | APP interface | Support √ | |
| Environmental |
| Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ |
| Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m |
| Cooling Method | Natural Cooling | | |
| Protection |
| Over Voltage Protection | | Under Voltage Protection | |
| Over Load Protection | | Short Circuit Protection | |
| Earth Leakage Protection | | Ground Protection | |
| Over-temp Protection | | Surge Protection | |
| | | Protection ratings | |
| Wallbox Charger Mechanical |
| Dimension(H×W×D,mm) | 410×260×164 | Weight | 1 phase :9kg 3 phase:12kg |
| Charging Cable Length | 5m or 7.5m or customized | Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal |
| LQM3T Mounting Pole(Optional) |
| Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg |
| Enclosure Material | Metal | |
F.A.Q.
Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will
provide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
